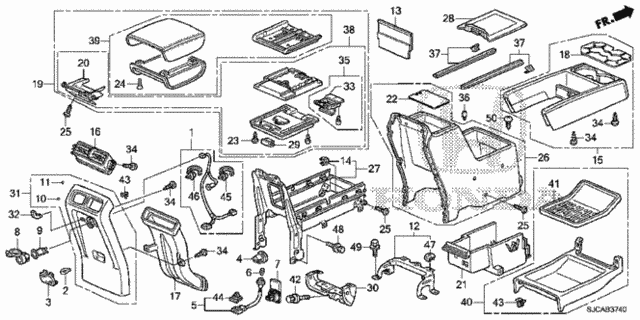

Console for 2014 Honda Ridgeline

Console for 2014 Honda Ridgeline #0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
20
20
21
21
22
22
23
23
24
24
25
25
25
25
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
34
34
34
34
34
34
34
34
35
35
36
36
37
37
37
37
38
38
39
39
40
40
41
41
42
42
43
43
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
No.
Part # / Description / Price
Price
1
32118SJCA10 - Interior/Bumper: SUB-WIRE, CENTER CONSOLE for Honda Image
Sub-Wire, Center Console
32118-SJC-A10
Honda Honda
MSRP $14.92
$14.35
MSRP $14.92
$14.35
2
33301S70003 - Interior/Bumper: BULB (12V 3.8W 2CP) for Honda Image
Bulb (12V 3.8W 2CP)
33301-S70-003
Honda Honda
MSRP $3.74
$2.81
MSRP $3.74
$2.81
3
34262SJCA01 - Interior/Bumper: LENS, RR. CONSOLE for Honda Image
Lens, Rear Console
34262-SJC-A01
Honda Honda
MSRP $20.06
$15.05
MSRP $20.06
$15.05
4
34751S2H003 - Interior/Bumper: LAMP UNIT, CUP HOLDER for Honda Image
Lamp Unit, Cup Holder
34751-S2H-003
Honda Honda
MSRP $26.42
$19.81
MSRP $26.42
$19.81
5
34752S2H003 - Interior/Bumper: WIRE for Honda Image
Wire
34752-S2H-003
Honda Honda
MSRP $13.50
$10.13
MSRP $13.50
$10.13
6
35505S2H003 - Interior/Bumper: BULB (T5 14V 1.4W) for Honda Image
Bulb (T5 14V 1.4W)
35505-S2H-003
Honda Honda
MSRP $9.42
$7.06
MSRP $9.42
$7.06
7
38520SHJA61ZB - Interior/Bumper: OUTLET ASSY., A.C. *NH167L* (GRAPHITE BLACK) for Honda Image
Outlet Assembly, A.C *NH167L* (Graphite Black)
38520-SHJ-A61ZB
Honda Honda
MSRP $76.21
$53.05
MSRP $76.21
$53.05
8
39631SJCA01ZH - Interior/Bumper: CAP ASSY. *NH607L* (DARK GRAY) for Honda Image
Cap Assembly *NH607L* (Dark Gray)
39631-SJC-A01ZH
Honda Honda
MSRP $26.25
$19.69
MSRP $26.25
$19.69
9
39632S5AA01 - Interior/Bumper: SOCKET ASSY. for Honda Image
Socket Assembly
39632-S5A-A01
Honda Honda
MSRP $65.20
$45.38
MSRP $65.20
$45.38
10
77637S9A003 - Interior/Bumper: SEAL A (CLOSE) for Honda Image
Seal A (Close)
77637-S9A-003
Honda Honda
MSRP $3.95
$2.96
MSRP $3.95
$2.96
11
77638S9A003 - Interior/Bumper: SEAL B (OPEN) for Honda Image
Seal B (Open)
77638-S9A-003
Honda Honda
MSRP $3.92
$2.95
MSRP $3.92
$2.95
12
83402SJCA00 - Interior/Bumper: BRACKET, FR. CONSOLE for Honda Image
Bracket, Front Console
83402-SJC-A00
Honda Honda
MSRP $471.57
$314.06
MSRP $471.57
$314.06
13
83403SJCA01ZA - Interior/Bumper: DIVIDER, BOX *NH167L* (GRAPHITE BLACK) for Honda Image
Divider, Box *NH167L* (Graphite Black)
83403-SJC-A01ZA
Honda Honda
MSRP $19.52
$14.64
MSRP $19.52
$14.64
14
83404SJCA01 - Interior/Bumper: NUT, PAL (M5) for Honda Image
Nut, Pal (M5)
83404-SJC-A01
Honda Honda
MSRP $1.21
$0.90
MSRP $1.21
$0.90
15
83405SJCA01ZF - Interior/Bumper: HOLDER ASSY., CONSOLE CUP *NH607L* (DARK GRAY) for Honda Image
Holder Assembly, Console Cup *NH607L* (Dark Gray)
83405-SJC-A01ZF
Honda Honda
MSRP $202.13
$135.83
MSRP $202.13
$135.83
16
83407SJCA03ZE - Interior/Bumper: OUTLET ASSY. *NH607L* (DARK GRAY) for Honda Image
Outlet Assembly *NH607L* (Dark Gray)
83407-SJC-A03ZE
Honda Honda
View Details
View Details
17
83408SJCA01 - Interior/Bumper: DUCT ASSY. for Honda Image
Duct Assembly
83408-SJC-A01
Honda Honda
MSRP $10.65
$7.99
MSRP $10.65
$7.99
18
83409SJCA02 - Interior/Bumper: RETAINER, CUP for Honda Image
Retainer, Cup
83409-SJC-A02
Honda Honda
MSRP $14.88
$11.16
MSRP $14.88
$11.16
20
83411SJCA01 - Interior/Bumper: HINGE, ARMREST for Honda Image
Hinge, Armrest
83411-SJC-A01
Honda Honda
MSRP $67.51
$46.98
MSRP $67.51
$46.98
21
83412SJCA31ZA - Interior/Bumper: BOX, CONSOLE *NH167L* (GRAPHITE BLACK) for Honda Image
Box, Console *NH167L* (Graphite Black)
83412-SJC-A31ZA
Honda Honda
MSRP $34.11
$30.44
MSRP $34.11
$30.44
22
83414SJCA01 - Interior/Bumper: MAT, ARMREST TRAY for Honda Image
Mat Armrest Tray
83414-SJC-A01
Honda Honda
MSRP $6.83
$5.13
MSRP $6.83
$5.13
23
83416SJCA01 - Interior/Bumper: SCREW, TAPPING (4.2X12) (PO) for Honda Image
Screw, Tapping (4.2X12) (Po)
83416-SJC-A01
Honda Honda
MSRP $2.98
$2.24
MSRP $2.98
$2.24
24
83417SJCA01 - Interior/Bumper: SCREW, TAPPING (4.2X12) (PO) for Honda Image
Screw, Tapping (4.2X12) (Po)
83417-SJC-A01
Honda Honda
MSRP $4.88
$3.66
MSRP $4.88
$3.66
25
83419SJCA01 - Interior/Bumper: SCREW, TAPPING (4.2X12) (METAL) for Honda Image
Screw, Tapping (4.2X12) (Metal)
83419-SJC-A01
Honda Honda
MSRP $5.13
$3.85
MSRP $5.13
$3.85
27
83421SJCA01 - Interior/Bumper: FRAME, CONSOLE for Honda Image
Frame, Console
83421-SJC-A01
Honda Honda
MSRP $308.14
$207.08
MSRP $308.14
$207.08
28
83422SJCA01ZH - Interior/Bumper: LID ASSY., CONSOLE *NH607L* (DARK GRAY) for Honda Image
Lid Assembly, Console *NH607L* (Dark Gray)
83422-SJC-A01ZH
Honda Honda
MSRP $70.38
$48.99
MSRP $70.38
$48.99
29
83425S9VA01ZA - Interior/Bumper: HOLDER, PEN *NH167L* (GRAPHITE BLACK) for Honda Image
Holder, Pen *NH167L* (Graphite Black)
83425-S9V-A01ZA
Honda Honda
MSRP $14.43
$10.83
MSRP $14.43
$10.83
30
83425SJCA00 - Interior/Bumper: BRACKET, FLOOR CONSOLE for Honda Image
Bracket, Floor Console
83425-SJC-A00
Honda Honda
MSRP $17.55
$13.16
MSRP $17.55
$13.16
31
83427SJCA01ZE - Interior/Bumper: HOUSING ASSY., GARNISH *NH607L* (DARK GRAY) for Honda Image
Housing Assembly, Garnish *NH607L* (Dark Gray)
83427-SJC-A01ZE
Honda Honda
MSRP $110.45
$96.00
MSRP $110.45
$96.00
32
83428SJCA01ZE - Interior/Bumper: HOOK, BAG SETTING *NH607L* (DARK GRAY) for Honda Image
Hook, Bag Setting *NH607L* (Dark Gray)
83428-SJC-A01ZE
Honda Honda
MSRP $45.18
$31.45
MSRP $45.18
$31.45
34
83432SJCA01 - Interior/Bumper: SCREW, TAPPING (3.5X10) (PO) for Honda Image
Screw, Tapping (3.5X10) (Po)
83432-SJC-A01
Honda Honda
MSRP $6.24
$4.68
MSRP $6.24
$4.68
35
83435SJCA01ZE - Interior/Bumper: LOCK ASSY. *NH607L* (DARK GRAY) for Honda Image
Lock Assembly *NH607L* (Dark Gray)
83435-SJC-A01ZE
Honda Honda
MSRP $78.27
$54.47
MSRP $78.27
$54.47
36
83436SJCA01 - Interior/Bumper: BUMPER, CONSOLE LID for Honda Image
Bumper, Console Lid
83436-SJC-A01
Honda Honda
MSRP $13.86
$10.39
MSRP $13.86
$10.39
37
83437SJCA01 - Interior/Bumper: GUIDE ASSY., CONSOLE LID for Honda Image
Guide Assembly, Console Lid
83437-SJC-A01
Honda Honda
MSRP $119.87
$81.27
MSRP $119.87
$81.27
38
83438SJCA01ZE - Interior/Bumper: BASE ASSY., ARMREST *NH607L* (DARK GRAY) for Honda Image
Base Assembly, Armrest *NH607L* (Dark Gray)
83438-SJC-A01ZE
Honda Honda
MSRP $283.49
$190.51
MSRP $283.49
$190.51
39
83440SJCA02ZE - Interior/Bumper: PAD ASSY., ARMREST *NH607L* (LEA) (DARK GRAY) for Honda Image
Pad Assembly, Armrest *NH607L* (Leather) (Dark Gray)
83440-SJC-A02ZE
Honda Honda
MSRP $603.99
$402.25
MSRP $603.99
$402.25
40
83450SJCA01ZE - Interior/Bumper: TRAY ASSY., CENTER FLOOR *NH607L* (DARK GRAY) for Honda Image
Tray Assembly, Center Floor *NH607L* (Dark Gray)
83450-SJC-A01ZE
Honda Honda
MSRP $49.45
$34.42
MSRP $49.45
$34.42
41
83451SJCA01ZE - Interior/Bumper: MAT, TRAY *NH607L* (DARK GRAY) for Honda Image
Mat
83451-SJC-A01ZE
Honda Honda
MSRP $31.31
$23.49
MSRP $31.31
$23.49
42
90110SE7000 - Interior/Bumper: BOLT-WASHER (8X21) for Honda Image
Bolt-Washer (8X21)
90110-SE7-000
Honda Honda
MSRP $3.18
$2.39
MSRP $3.18
$2.39
43
90666SDAA01 - Interior/Bumper: CLIP, SNAP FITTING (PO)(NATURAL) for Honda Image
Clip, Snap Fitting (Po)(Natural)
90666-SDA-A01
Honda Honda
MSRP $0.87
$0.65
MSRP $0.87
$0.65
44
91533S04003 - Interior/Bumper: CLIP, CONNECTOR (NATURAL) for Honda Image
Clip, Connector (Natural)
91533-S04-003
Honda Honda
MSRP $4.08
$3.06
MSRP $4.08
$3.06
45
91540TA0003 - Interior/Bumper: CLIP, HARNESS BAND (100.1MM) (NATURAL) for Honda Image
Clip, Harness Band (100.1MM) (Natural)
91540-TA0-003
Honda Honda
MSRP $0.35
$0.26
MSRP $0.35
$0.26
46
91541S0A003 - Interior/Bumper: CLIP, HARNESS BAND (145MM) (BLACK) for Honda Image
Clip, Harness Band (145MM) (Black)
91541-S0A-003
Honda Honda
MSRP $4.15
$3.11
MSRP $4.15
$3.11
47
91641SM4003 - Interior/Bumper: GROMMET, SCREW (4MM) for Honda Image
Grommet, Screw (4MM)
91641-SM4-003
Honda Honda
MSRP $5.53
$4.15
MSRP $5.53
$4.15
48
934030602008 - Interior/Bumper: BOLT-WASHER (6X20) for Honda Image
Bolt-Washer (6X20)
93403-06020-08
Honda Honda
MSRP $1.77
$1.33
MSRP $1.77
$1.33
49
934050802004 - Interior/Bumper: BOLT-WASHER (8X20) for Honda Image
Bolt-Washer (8X20)
93405-08020-04
Honda Honda
MSRP $2.50
$1.88
MSRP $2.50
$1.88
50
9391314420 - Interior/Bumper: SCREW, TAPPING (4X16) (PO) for Honda Image
Screw, Tapping (4X16) (Po)
93913-14420
Honda Honda
MSRP $0.95
$0.71
MSRP $0.95
$0.71
